ZQ、ZQH、ZQSH型圓柱齒輪減速機產品特點
ZQ型是漸開線圓柱齒輪減速器，ZQH型是圓弧圓柱齒輪減速器，ZQSH型是二級傳動雙圓弧圓柱齒輪減速器。各減速機型均適用于建材、起重、運輸、冶金、 化工和輕工等行業。高速軸轉速不超過1500r/min，齒輪圓周速度不大于12m/s，效率不低于0.94，工作環境為-40℃—＋40℃，可正反轉運行。

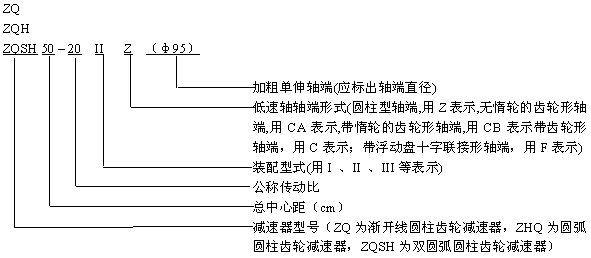

ZQ、ZQH、ZQSH型圓柱齒輪減速機型號說明及標記示例
|
I
|
II
|
III
|
IV
|
V
|
VI
|
VII
|
VIII
|
IX
|
||
|
50
|
40
|
31.5
|
25
|
20
|
16
|
12.5
|
10
|
8
|
||
|
ZQ250—ZQ1000
|
48.57
|
40.17
|
31.50
|
23.34
|
20.49
|
15.75
|
12.64
|
10.35
|
8.230
|
|
|
ZQSH250—ZQSH1000
|
51.50
|
39.00
|
32.18
|
25.43
|
19.80
|
16.12
|
12.13
|
9.760
|
7.990
|
|
|
ZQH250—ZQH500
|
51.71
|
39.23
|
30.75
|
24.42
|
19.99
|
16.46
|
12.53
|
10.30
|
8.205
|
|
|
ZQH650
|
48.78
|
40.32
|
30.86
|
24.51
|
20.06
|
15.92
|
12.12
|
9.960
|
7.937
|
|
|
ZQH750
|
49.78
|
41.15
|
31.20
|
24.78
|
20.28
|
16.02
|
12.19
|
10.02
|
7.933
|
|
|
ZQH850
|
48.47
|
39.38
|
30.52
|
24.35
|
20.00
|
15.59
|
12.73
|
9.863
|
8.077
|
|
|
ZQH1000
|
50.66
|
40.63
|
31.72
|
25.02
|
19.43
|
15.89
|
12.38
|
10.26
|
8.043
|
|
